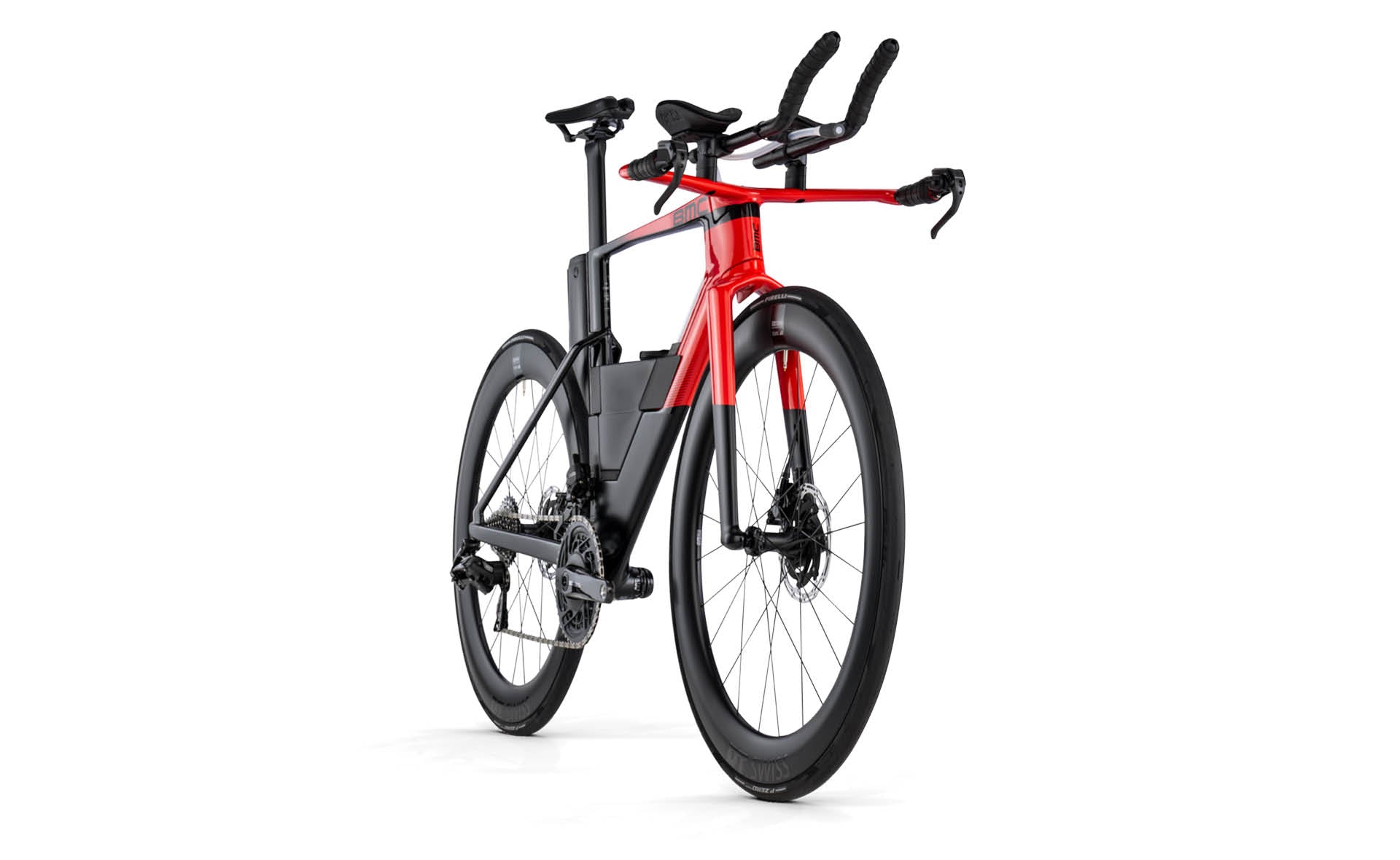

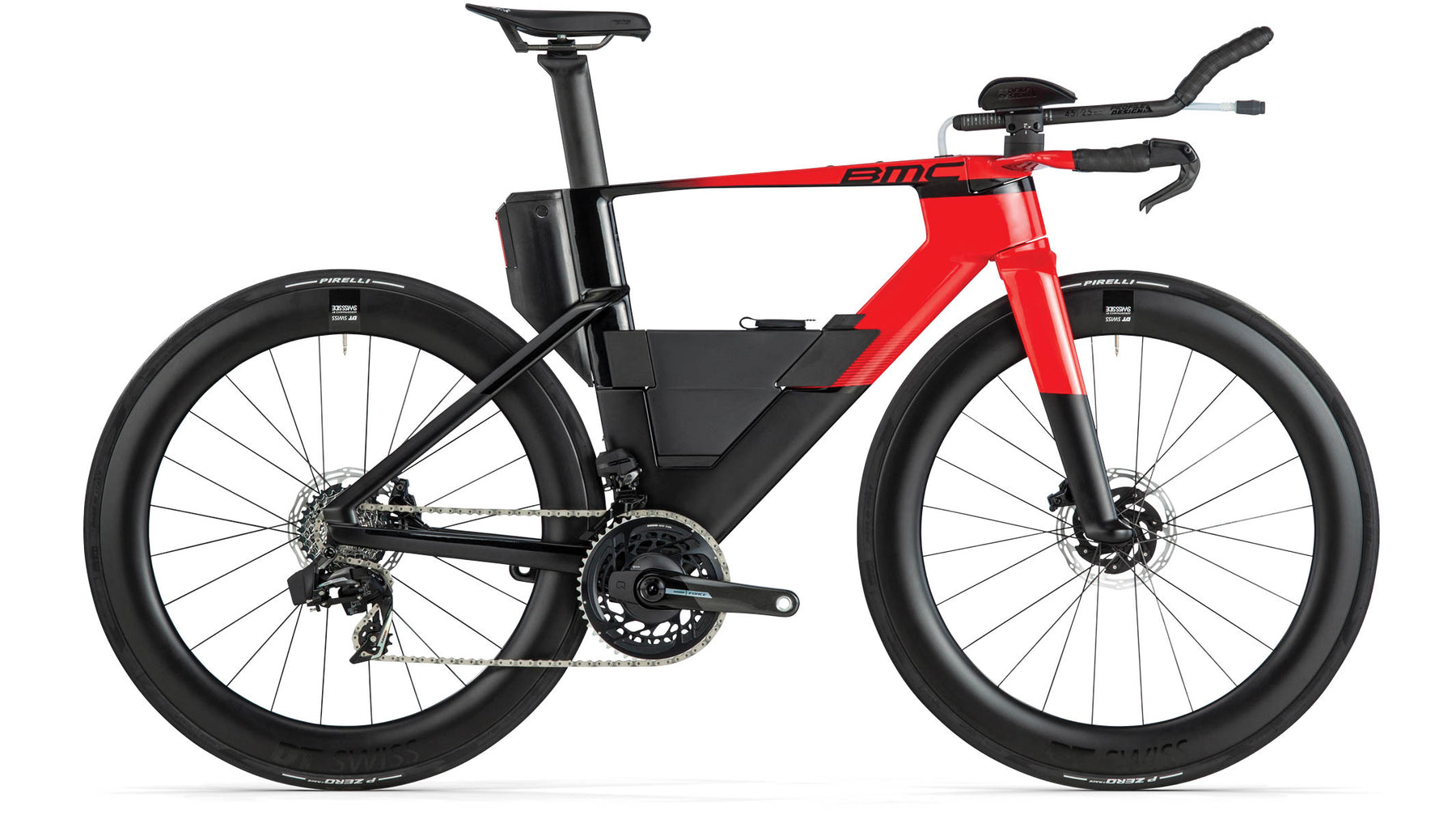

Speed means nothing if you can’t use it. The all-new BMC Speedmachine 01 TWO takes everything you know about triathlon bikes and places the most crucial element at the center - you. Of course, the countless hours in wind tunnels, feedback from some of the fastest cyclists in the world, and technical collaboration with our partners at Red Bull Advanced Technologies were vitally important. But a bike that performs well on paper doesn’t mean anything if the rider can’t actually use it. Finished off with the SRAM Force eTap AXS Groupset and powermeter as well as the DT Swiss ARC 1650 Wheelset with Pirelli P-Zero Race 26mm tires.
Technology
All Aero
Vital Stability
Adaptability
Everything. Integrated.
Technical Overview
Frameset
Frame:
Speedmachine 01 Premium Carbon | ICS Technology, Stealth Cable Routing | Integrated Fuel Tank 1200 hydration system | Integrated Rear Storage 260 | Integrated Rear Light | Stealth Dropout Design | T47 Bottom Bracket | Flat Mount Disc | 142x12mm Thru-Axle
Fork:
Speedmachine 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 100x12mm Thru-Axle
Cockpit
Handlebar:

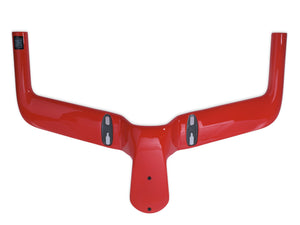

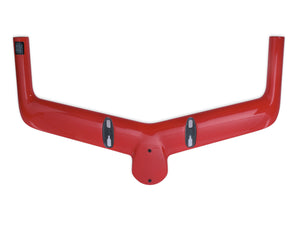

BMC Speedmachine Flat Cockpit / Profile Design Aeria Ultimate with Ergo+ armrests and 45/25 SLC Aerobar Extensions
Seatpost:
BMC Speedmachine Seatpost 0 offset
- 0mm, 12.5mm, 25mm offsets
Saddle:
Fizik Transiro Aeris Long Distance R5 or Fizik Mistica Mg
Seat
Seatpost:
BMC Speedmachine Seatpost 0 offset
- 0mm, 12.5mm, 25mm offsets
Saddle:
Fizik Transiro Aeris Long Distance R5 or Fizik Mistica Mg
Drivetrain
Gears:
2x12
Crankset:
SRAM Force 48-35T Power Meter
Cassette:
SRAM Force XG-1270 10-30T
Chain:
SRAM Force 12 Speed
Front Derailleur:
SRAM Force eTap AXS
Rear Derailleur:
SRAM Force eTap AXS
Shifters:
SRAM S900 Aero
Brakes
Brake Levers / Calipers:
SRAM S-900 Aero Disc Brake
Rotors:
SRAM Centerline XR 160 / 160 mm - Centerlock
Wheels
Rims:
DT Swiss ARC 1650 Carbon Disc - 62mm
Hubs (F/R):
DT Swiss ARC 1650 Disc
Tires:
Pirelli P-Zero Race, 26mm
Tubeless Information:
Tubeless Ready Rims / Tubetype Tires
Accessories

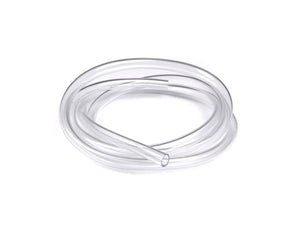

Fuel Tank 1200 with straw and bite valve, Rear Storage 260, Intergrated Rear Light
Additional Information
Tire Clearance:
30mm (Measured Width)
ASTM Classification:
Level 1
Weight without Pedals:
9.1 Kg (including FuelTank, Rear Storage and Light)
Weight Limit:
110 Kg
| Size | S | M | L |
|---|---|---|---|
| Rider Height | <174 | 172-185 | >180 |
| Reach | |||
| Stack | |||
| Bar Drop | |||
| Bar Reach | |||
| Bar Rise | |||
| Bar Sweep | |||
| Bar Width | 400 | 400 | 400 |
| Base Bar Drop Flat Cockpit | |||
| Base Bar Drop V-Cockpit | |||
| Base Bar Reach Flat Cockpit | |||
| Base Bar Reach V-Cockpit | |||
| BB Drop | 62 | 72 | 72 |
| BB Drop (SLACK) | |||
| BB Drop (STEEP) | |||
| BB Height (SLACK) | |||
| BB Height (STEEP) | |||
| Chainstay | |||
| Crank Length | 165 | 170 | 172.5 |
| LT | BB Drop (SLACK) | |||
| LT | BB Drop (STEEP) | |||
| LT | BB Height (SLACK) | |||
| LT | BB Height (STEEP) | |||
| LT | Chainstay | |||
| LT | Fork Length | |||
| LT | Fork Rake | |||
| LT | Frame Size | |||
| LT | Front Center (SLACK) | |||
| LT | Front Center (STEEP) | |||
| LT | Head Tube | |||
| LT | HT Angle (SLACK) | |||
| LT | HT Angle (STEEP) | |||
| LT | Reach (SLACK) | |||
| LT | Reach (STEEP) | |||
| LT | Rider Height | |||
| LT | Seat Tube | |||
| LT | ST Angle @750mm Saddle Height (SLACK) | |||
| LT | ST Angle @750mm Saddle Height (STEEP) | |||
| LT | ST Angle Actual (SLACK) | |||
| LT | ST Angle Actual (STEEP) | |||
| LT | ST Angle Effective (SLACK) | |||
| LT | ST Angle Effective (STEEP) | |||
| LT | Stack (SLACK) | |||
| LT | Stack (STEEP) | |||
| LT | Stand Over Height (80 in Front of BB) | |||
| LT | Stand Over Height (Lowest Point) | |||
| LT | Top Tube (SLACK) | |||
| LT | Top Tube (STEEP) | |||
| LT | Wheelbase (SLACK) | |||
| LT | Wheelbase (STEEP) | |||
| ST | BB Drop (SLACK) | |||
| ST | BB Drop (STEEP) | |||
| ST | BB Height (STACK) | |||
| ST | BB Height (STEEP) | |||
| ST | Chainstay | |||
| ST | Fork Length | |||
| ST | Fork Rake | |||
| ST | Frame Size | |||
| ST | Front Center (SLACK) | |||
| ST | Front Center (STEEP) | |||
| ST | Head Tube | |||
| ST | HT Angle (SLACK) | |||
| ST | HT Angle (STEEP) | |||
| ST | Reach (SLACK) | |||
| ST | Reach (STEEP) | |||
| ST | Rider Height | |||
| ST | Seat Tube | |||
| ST | ST Angle @750mm Saddle Height (SLACK) | |||
| ST | ST Angle @750mm Saddle Height (STEEP) | |||
| ST | ST Angle Actual (SLACK) | |||
| ST | ST Angle Actual (STEEP) | |||
| ST | ST Angle Effective (SLACK) | |||
| ST | ST Angle Effective (STEEP) | |||
| ST | Stack (SLACK) | |||
| ST | Stack (STEEP) | |||
| ST | Stand Over Height (80 in Front of BB) | |||
| ST | Stand Over Height (Lowest Point) | |||
| ST | Top Tube (SLACK) | |||
| ST | Top Tube (STEEP) | |||
| ST | Wheelbase (SLACK) | |||
| ST | Wheelbase (STEEP) | |||
| Fork Length | 391 | 391 | 391 |
| Fork Rake | |||
| Frame Size | |||
| Front Center | 578 | 606 | 646 |
| Front Center (SLACK) | |||
| Front Center (STEEP) | |||
| Head Tube | |||
| Head Tube Angle | |||
| HT Angle (SLACK) | |||
| HT Angle (STEEP) | |||
| Pad Reach Flat Cockpit | 348-466 | 368-486 | 395-548 |
| Pad Reach V-Cockpit | |||
| Pad Stack Flat Cockpit | 558-651 | 588-681 | 628-721 |
| Pad Stack V-Cockpit | |||
| Reach (SLACK) | |||
| Reach (STEEP) | |||
| Rear Center | 405 | 405 | 405 |
| Saddle Height Range | 610-740 | 705-835 | 760-881 |
| Seat Angle | 80 | 80 | 82.4 |
| Seat Tube | 460 | 525 | 551 |
| Seatpost Drop | |||
| Seatpost Length | 300 | 330 | 360 |
| Seatpost Offset | 0, 12.5, 25 | 0, 12.5, 25 | 0, 12.5, 25 |
| ST Angle @750mm Saddle Height (SLACK) | |||
| ST Angle @750mm Saddle Height (STEEP) | |||
| ST Angle Actual (SLACK) | |||
| ST Angle Actual (STEEP) | |||
| ST Angle Effective (SLACK) | |||
| ST Angle Effective (STEEP) | |||
| Stack (SLACK) | |||
| Stack (STEEP) | |||
| Stand Over Height (80 in Front of BB) | |||
| Stand Over Height (Lowest Point) | |||
| Standover Height | 766 | 806 | 837 |
| Stem Angle | |||
| Stem Length | |||
| Top Tube | |||
| Top Tube (SLACK) | |||
| Top Tube (STEEP) | |||
| Trail | |||
| Wheelbase | 974 | 1000 | 1040 |
| Wheelbase (SLACK) | |||
| Wheelbase (STEEP) |
