Panoramica tecnica
Telaio
Telaio:

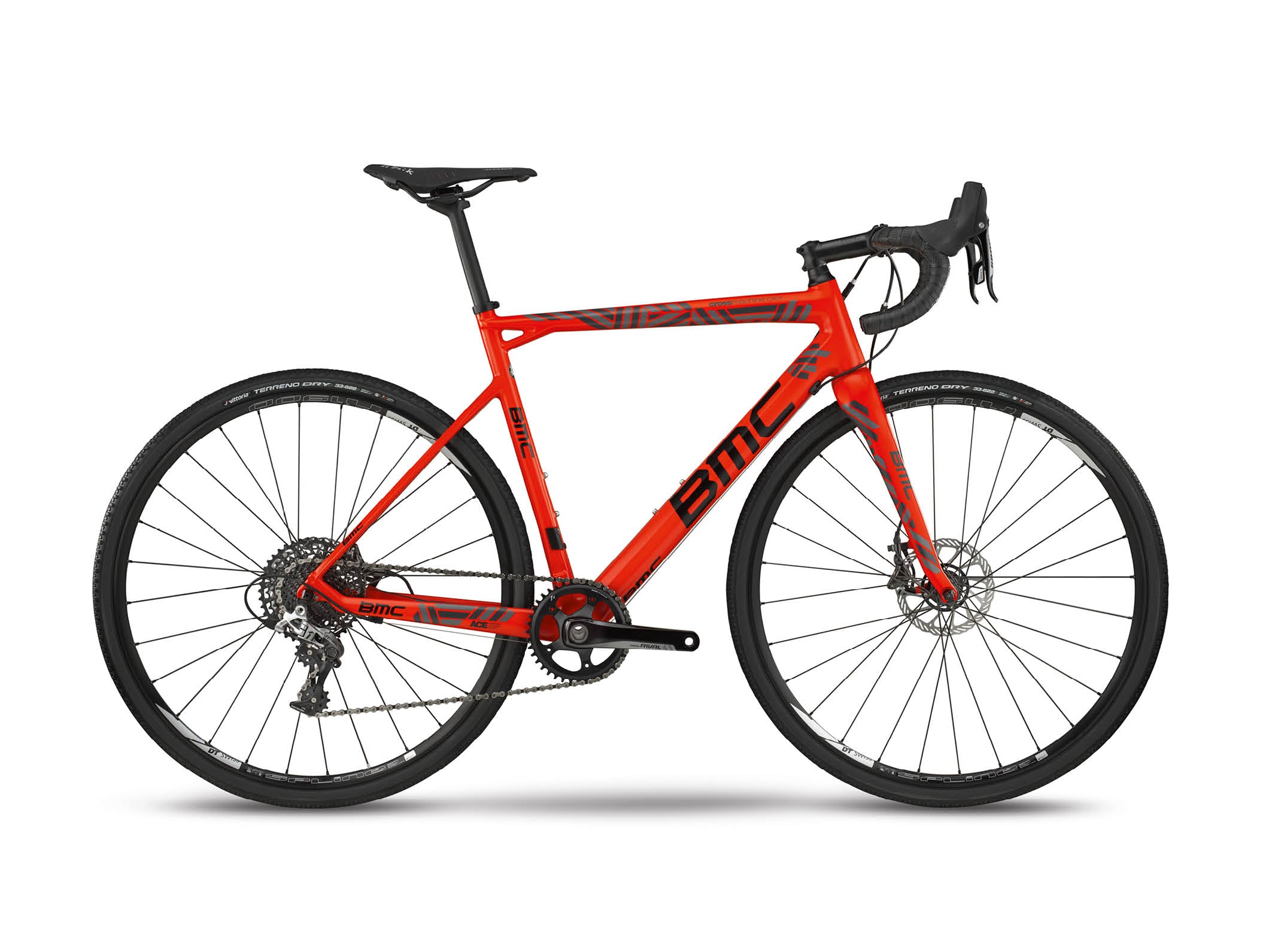

Crossmachine CX01 | ACE Technology - 01 Premium Carbon - Tuned Compliance Concept
Forcella:
ACE Technology | 01 Premium Carbon | Tuned Compliance Concept
Cockpit
Piega:
BMC RAB 03 | ergo top shape | compact bend
Attacco Manubrio:
BMC RSM 03
Reggisella:
TCC 01 Premium Carbon Compliance-Post | 3mm of
Sella:
Fizik Antares R7 | manganese
Seat
Seatpost:
TCC 01 Premium Carbon Compliance-Post | 3mm of
Saddle:
Fizik Antares R7 | manganese
Gruppo
Ingranaggi:
1 x 11
Guarnitura:
Sram Force CX1 | 40T
Cassetta:
Sram PG1170 | 11-32T
Catena:
Sram PC1130
Deragliatore Posteriore:
Sram Force CX1
Comandi:
Sram Force HRD
Freni
Leve Freno / Pinze:
Sram Force HRD-A1 / Centerline (140/140)
Ruote
Cerchi:
DT Swiss R23 Spline
Mozzi:
DT Swiss R23 Spline | 6-Bolt
Pneumatici:
Vittoria Terreno Dry | 33mm
| Size | 48 | 51 | 54 | 57 | 60 |
|---|---|---|---|---|---|
| Rider Height | |||||
| Reach | 368 | 377 | 386 | 394 | 405 |
| Stack | 506 | 530 | 550 | 572 | 601 |
| Bar Drop | 125 | 125 | 125 | 125 | 125 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 |
| Bar Rise | |||||
| Bar Sweep | |||||
| Bar Width | 420 | 420 | 420 | 440 | 440 |
| Base Bar Drop Flat Cockpit | |||||
| Base Bar Drop V-Cockpit | |||||
| Base Bar Reach Flat Cockpit | |||||
| Base Bar Reach V-Cockpit | |||||
| BB Drop | 62 | 62 | 62 | 62 | 62 |
| BB Drop (SLACK) | |||||
| BB Drop (STEEP) | |||||
| BB Height (SLACK) | |||||
| BB Height (STEEP) | |||||
| Chainstay | |||||
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 |
| LT | BB Drop (SLACK) | |||||
| LT | BB Drop (STEEP) | |||||
| LT | BB Height (SLACK) | |||||
| LT | BB Height (STEEP) | |||||
| LT | Chainstay | |||||
| LT | Fork Length | |||||
| LT | Fork Rake | |||||
| LT | Frame Size | |||||
| LT | Front Center (SLACK) | |||||
| LT | Front Center (STEEP) | |||||
| LT | Head Tube | |||||
| LT | HT Angle (SLACK) | |||||
| LT | HT Angle (STEEP) | |||||
| LT | Reach (SLACK) | |||||
| LT | Reach (STEEP) | |||||
| LT | Rider Height | |||||
| LT | Seat Tube | |||||
| LT | ST Angle @750mm Saddle Height (SLACK) | |||||
| LT | ST Angle @750mm Saddle Height (STEEP) | |||||
| LT | ST Angle Actual (SLACK) | |||||
| LT | ST Angle Actual (STEEP) | |||||
| LT | ST Angle Effective (SLACK) | |||||
| LT | ST Angle Effective (STEEP) | |||||
| LT | Stack (SLACK) | |||||
| LT | Stack (STEEP) | |||||
| LT | Stand Over Height (80 in Front of BB) | |||||
| LT | Stand Over Height (Lowest Point) | |||||
| LT | Top Tube (SLACK) | |||||
| LT | Top Tube (STEEP) | |||||
| LT | Wheelbase (SLACK) | |||||
| LT | Wheelbase (STEEP) | |||||
| ST | BB Drop (SLACK) | |||||
| ST | BB Drop (STEEP) | |||||
| ST | BB Height (STACK) | |||||
| ST | BB Height (STEEP) | |||||
| ST | Chainstay | |||||
| ST | Fork Length | |||||
| ST | Fork Rake | |||||
| ST | Frame Size | |||||
| ST | Front Center (SLACK) | |||||
| ST | Front Center (STEEP) | |||||
| ST | Head Tube | |||||
| ST | HT Angle (SLACK) | |||||
| ST | HT Angle (STEEP) | |||||
| ST | Reach (SLACK) | |||||
| ST | Reach (STEEP) | |||||
| ST | Rider Height | |||||
| ST | Seat Tube | |||||
| ST | ST Angle @750mm Saddle Height (SLACK) | |||||
| ST | ST Angle @750mm Saddle Height (STEEP) | |||||
| ST | ST Angle Actual (SLACK) | |||||
| ST | ST Angle Actual (STEEP) | |||||
| ST | ST Angle Effective (SLACK) | |||||
| ST | ST Angle Effective (STEEP) | |||||
| ST | Stack (SLACK) | |||||
| ST | Stack (STEEP) | |||||
| ST | Stand Over Height (80 in Front of BB) | |||||
| ST | Stand Over Height (Lowest Point) | |||||
| ST | Top Tube (SLACK) | |||||
| ST | Top Tube (STEEP) | |||||
| ST | Wheelbase (SLACK) | |||||
| ST | Wheelbase (STEEP) | |||||
| Fork Length | 377 | 377 | 377 | 377 | 377 |
| Fork Rake | 45 | 45 | 45 | 45 | 45 |
| Frame Size | |||||
| Front Center | 576 | 580 | 591 | 605 | 625 |
| Front Center (SLACK) | |||||
| Front Center (STEEP) | |||||
| Head Tube | 108 | 128 | 148 | 171 | 201 |
| Head Tube Angle | 70.5 | 72 | 72.5 | 72.5 | 72.5 |
| HT Angle (SLACK) | |||||
| HT Angle (STEEP) | |||||
| Pad Reach Flat Cockpit | |||||
| Pad Reach V-Cockpit | |||||
| Pad Stack Flat Cockpit | |||||
| Pad Stack V-Cockpit | |||||
| Reach (SLACK) | |||||
| Reach (STEEP) | |||||
| Rear Center | 425 | 425 | 425 | 425 | 425 |
| Saddle Height Range | |||||
| Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat Tube | 475 | 505 | 535 | 565 | 600 |
| Seatpost Drop | |||||
| Seatpost Length | 350 | 350 | 350 | 350 | 350 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 |
| ST Angle @750mm Saddle Height (SLACK) | |||||
| ST Angle @750mm Saddle Height (STEEP) | |||||
| ST Angle Actual (SLACK) | |||||
| ST Angle Actual (STEEP) | |||||
| ST Angle Effective (SLACK) | |||||
| ST Angle Effective (STEEP) | |||||
| Stack (SLACK) | |||||
| Stack (STEEP) | |||||
| Stand Over Height (80 in Front of BB) | |||||
| Stand Over Height (Lowest Point) | |||||
| Standover Height | |||||
| Stem Angle | +/- 6 | +/- 6 | +/- 6 | +/- 6 | +/- 6 |
| Stem Length | 90 | 100 | 110 | 120 | 130 |
| Top Tube | 518 | 534 | 549 | 563 | 583 |
| Top Tube (SLACK) | |||||
| Top Tube (STEEP) | |||||
| Trail | 76 | 66 | 63 | 63 | 63 |
| Wheelbase | 994 | 997 | 1008 | 1022 | 1043 |
| Wheelbase (SLACK) | |||||
| Wheelbase (STEEP) |
